Please contact us for more photos of 5747846-6
| Part Number | 5747846-6 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 479860 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn D-Subminiature SKT 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port |
| Category | Connectors |
| Family | Connector D-Subminiature |
| ROHS Compliant | Yes |
| MSL Level | 5747846-6 |
| Datasheet download |  5747846-6.pdf |
| Part Number | 5747846-6 |
|---|---|
| Rad Hard | No |
| Family Name | AMPLIMITE D-subminiature Connectors |
| Contact Material | Phosphor Bronze |
| Number of Ports | 1 |
| Lead Finish | Tin |
| Mounting | Through Hole |
| Termination Method | Solder |
| Contact Plating | Gold Over Nickel |
| Gender | SKT |
| Housing Material | Thermoplastic |
| Product Dimensions | 53.03 x 18.79 x 12.54 mm |
| Max Processing Temp | 240|260|265 |
| Type | D-Subminiature |
| Number of Terminals | 25 |
| Number of Contacts | 25 |
| Pitch | 2.75 mm |
| Body Orientation | Right Angle |
| Product Depth | 18.79 mm |
| Product Height | 12.54 mm |
| Product Length | 53.03 mm |
| Replacement Part Number | PART-5747846-6 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Amphenol-FCI | Conn High Density D-Sub SKT 15 POS 2.28mm Solder RA Thru-Hole 15 Terminal 1 Port Download PDF datasheet for ICD15S13E6GV00LF.pdf |
|
Amphenol-FCI | Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Download PDF datasheet for D09S13A4GV00LF.pdf |
|
TE Connectivity | Conn D-Subminiature SKT 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Download PDF datasheet for 1-5745967-6.pdf |
|
Amphenol-FCI | Conn D-Subminiature PIN 25 POS 2.76mm Press Fit ST Thru-Hole 25 Terminal 1 Port Download PDF datasheet for D25P91C6PX00LF.pdf |
|
Amphenol-FCI | Conn D-Subminiature SKT 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port Download PDF datasheet for D25S33E4GX00LF.pdf |
|

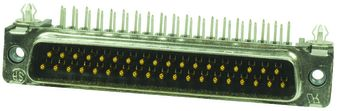

TE Connectivity | Conn D-Subminiature PIN 37 POS 2.77mm Solder RA Thru-Hole 37 Terminal 1 Port Download PDF datasheet for 5747843-4.pdf |
|
