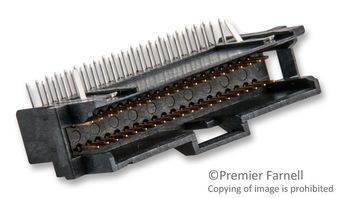

Please contact us for more photos of 6-146309-3
| Part Number | 6-146309-3 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 113280 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 6-146309-3 |
| Datasheet download |  6-146309-3.pdf |
| Part Number | 6-146309-3 |
|---|---|
| Body Orientation | Right Angle |
| Rad Hard | No |
| Termination Method | Solder |
| Pitch | 2.54 mm |
| Max Processing Temp | 240|260|265 |
| Gender | HDR |
| Housing Color | Black |
| Operating Temperature | -65 to 105 °C |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Lead Finish | Matte Tin|Tin |
| Product Dimensions | 32.61 x 14.18 x 6.05 mm |
| Contact Plating | Gold Over Nickel |
| Mounting | Through Hole |
| Product Depth | 14.18 mm |
| Product Height | 6.05 mm |
| Product Length | 32.61 mm |
| Replacement Part Number | PART-6-146309-3 |
| Weight | Contact us |
| Country of Origin | - |
