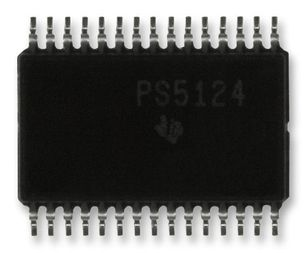

Please contact us for more photos of BQ7693000DBTR
| Part Number | BQ7693000DBTR |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 411260 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Battery Monitor Li-Ion Li-Pol LiFePO4 0V to 3.6V 30-Pin TSSOP T R |
| Category | Power Management IC |
| Family | Battery Management |
| ROHS Compliant | Yes |
| MSL Level | BQ7693000DBTR |
| Datasheet download |  BQ7693000DBTR.pdf |
| Part Number | BQ7693000DBTR |
|---|---|
| Output Voltage | 0 to 3.6 V |
| Operating Supply Voltage | 6 to 25 V |
| Battery Type | Li-Ion|Li-Pol|LiFePO4 |
| Lead Finish | Gold Over Nickel Palladium |
| Screening Level | Industrial |
| Pin Count | 30 |
| Type | Battery Monitoring |
| Rad Hard | No |
| Operating Temperature | -40 to 85 °C |
| MSL Level | 2 |
| Supplier Package | TSSOP |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Product Dimensions | 7.9(Max) x 4.5(Max) x 1.05(Max) |
| Package | 30TSSOP |
| Replacement Part Number | PART-BQ7693000DBTR |
| Weight | Contact us |
| Country of Origin | - |
