Please contact us for more photos of BQ7790500PWR
| Part Number | BQ7790500PWR |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 324340 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Battery Protection Li-Ion Lithium Phosphate 1mA 0 to 16V 20-Pin TSSOP T R |
| Category | Power Management IC |
| Family | Battery Management |
| ROHS Compliant | Yes |
| MSL Level | BQ7790500PWR |
| Datasheet download |  BQ7790500PWR.pdf |
| Part Number | BQ7790500PWR |
|---|---|
| Battery Type | Li-Ion|Lithium Phosphate |
| Moisture Sensitivity Level | 2 |
| Output Voltage | 0 to 16 V |
| Pin Count | 20 |
| Type | Battery Protection |
| Screening Level | Industrial |
| Lead Finish | Gold Over Nickel Palladium |
| Mounting | Surface Mount |
| Rad Hard | No |
| Maximum Processing Temperature | 260 °C |
| Output Current | 1 mA |
| Operating Temperature | -40 to 85 °C |
| Operating Supply Voltage | 3 to 25 V |
| Package Dimensions | 6.5 x 4.4 x 1.05 mm |
| Supplier Package | TSSOP |
| Package | 20TSSOP |
| Replacement Part Number | PART-BQ7790500PWR |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

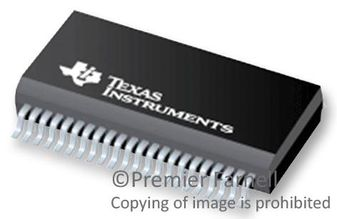

Texas Instruments | Gas Gauge Li-Ion Li-Pol 30-Pin TSSOP T R Download PDF datasheet for BQ20Z60DBT-R1.pdf |
|
