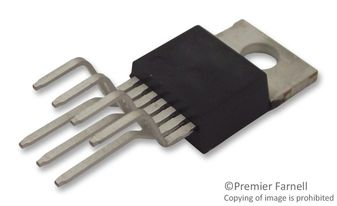

Please contact us for more photos of LM22670TJE-ADJ NOPB
| Part Number | LM22670TJE-ADJ NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 128470 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conv DC-DC Single Step Down 4.5V to 42V 7-Pin Thin TO-263 EP T R |
| Category | Power Management IC |
| Family | DC to DC Converter |
| ROHS Compliant | Yes |
| MSL Level | LM22670TJE-ADJ NOPB |
| Datasheet download |  LM22670TJE-ADJ NOPB.pdf |
| Part Number | LM22670TJE-ADJ NOPB |
|---|---|
| Pin Count | 7 |
| Output Voltage | 1.285 to 37 V |
| Supplier Package | Thin TO-263 EP |
| Product Dimensions | 10.16 x 9.85 x 2 mm |
| Rad Hard | No |
| Maximum Input Voltage | 42 V |
| Maximum Output Current | 3 A |
| Minimum Input Voltage | 4.5 V |
| Operating Temperature | -40 to 125 °C |
| Efficiency | 90(Min) % |
| Switching Regulator | Yes |
| Operating Supply Voltage | 4.5 to 42 V |
| Screening Level | Automotive |
| Lead Finish | Tin |
| Max Processing Temp | 260 |
| Output Type | Adjustable |
| Switching Frequency | 500 kHz |
| Number of Outputs | 1 |
| Mounting | Surface Mount |
| MSL Level | 1 |
| Type | Step Down |
| Package | 7Thin TO-263 EP |
| Replacement Part Number | PART-LM22670TJE-ADJ NOPB |
| Weight | Contact us |
| Country of Origin | - |
