Please contact us for more photos of LM25005MHX NOPB
| Part Number | LM25005MHX NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 663730 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conv DC-DC Single Step Down 7V to 42V 20-Pin TSSOP EP T R |
| Category | Power Management IC |
| Family | DC to DC Converter |
| ROHS Compliant | Yes |
| MSL Level | LM25005MHX NOPB |
| Datasheet download |  LM25005MHX NOPB.pdf |
| Part Number | LM25005MHX NOPB |
|---|---|
| Minimum Input Voltage | 7 V |
| Output Type | Adjustable |
| Operating Supply Voltage | 7 to 42 V |
| Operating Temperature | -40 to 125 °C |
| Product Dimensions | 6.5 x 4.4 x 0.9 mm |
| Pin Count | 20 |
| Switching Frequency | 50 to 500 kHz |
| Type | Step Down |
| Output Voltage | 1.225 to 40 V |
| Rad Hard | No |
| Maximum Output Current | 2.5 A |
| Switching Regulator | Yes |
| Number of Outputs | 1 |
| Maximum Input Voltage | 42 V |
| Efficiency | 90 % |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Lead Finish | Tin |
| MSL Level | 1 |
| Supplier Package | TSSOP EP |
| Package | 20TSSOP EP |
| Replacement Part Number | PART-LM25005MHX NOPB |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Texas Instruments | Conv DC-DC Single Step Down 3.5V to 60V 16-Pin HTSSOP Tube Download PDF datasheet for LM46001PWP.pdf |
|

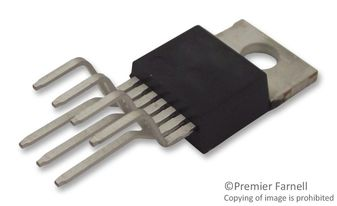

Texas Instruments | Conv DC-DC Single Step Down 8V to 40V 7-Pin(7+Tab) TO-220 Rail Download PDF datasheet for LM2679T-12 NOPB.pdf |
|
Infineon | Conv DC-DC 15A PMBus SupIRBuck Voltage Regulator 1.5V to 21V 26 Pin PQFN Download PDF datasheet for IR38062MTRPBF.pdf |
|
Texas Instruments | Conv DC-DC Single Step Down 3.5V to 28V 8-Pin PowerSO Tube Download PDF datasheet for TPS54531DDA.pdf |
|
Texas Instruments | Conv DC-DC Single Step Down 8V to 40V 8-Pin SOIC N Rail Download PDF datasheet for LM2672M-ADJ NOPB.pdf |
|
Texas Instruments | Conv DC-DC Single Step Down 4.5V to 42V 8-Pin PSOP EP T R Download PDF datasheet for LM22672MRE-5.0 NOPB.pdf |
|
Texas Instruments | Conv DC-DC Single Step Down 2.2V to 5.5V 9-Pin uSIP T R Download PDF datasheet for TPS82740BSIPR.pdf |
|
Texas Instruments | Conv DC-DC Single Step Down 2.85V to 5.5V 14-Pin TSSOP EP Rail Download PDF datasheet for LM2852YMXA-1.0 NOPB.pdf |
|
Texas Instruments | Conv DC-DC Single Step Down 3V to 17V 16-Pin VQFN T R Download PDF datasheet for TPS62134CRGTR.pdf |
|

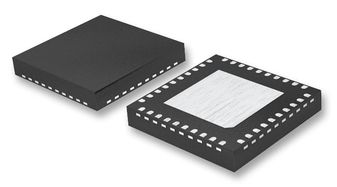

Texas Instruments | Conv DC-DC Quint Step Down 18V to 4.5V 40-Pin VQFN T R Download PDF datasheet for TPS65288RHAR.pdf |
