Please contact us for more photos of PTH12040WAD
| Part Number | PTH12040WAD |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 291810 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Module DC-DC 1-OUT 0.8V to 5.5V 50A 20-Pin DIP Module Tray |
| Category | Power Supplies |
| Family | DC to DC Power Supply |
| ROHS Compliant | Yes |
| MSL Level | PTH12040WAD |
| Datasheet download |  PTH12040WAD.pdf |
| Part Number | PTH12040WAD |
|---|---|
| Max Processing Temp | 260 |
| Rad Hard | No |
| Type | Step Down |
| Supplier Package | DIP Module |
| Input Voltage | 8 to 14 V |
| Switching Regulator | Yes |
| Number of Outputs | 1 |
| Mounting | Through Hole |
| Output Current | 50 A |
| Output Voltage | 0.8 to 5.5 V |
| Product Dimensions | 51.94 x 26.54 x 8.82 mm |
| Pin Count | 20 |
| Package | 20DIP Module |
| Replacement Part Number | PART-PTH12040WAD |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Ericsson | Module DC-DC 1-OUT 0.6V to 3.3V 50A 165W 20-Pin SIP Tray Download PDF datasheet for BMR4642008 001B.pdf |
|
Artesyn Embedded Technologies | Module DC-DC 1-OUT 12V 33A 396W 5-Pin Quarter Brick Download PDF datasheet for AVQ400-48S12-6L.pdf |
|
Texas Instruments | Module DC-DC 1-OUT 1.2V to 5.5V 6A 6-Pin DIP Module Tray Download PDF datasheet for PTH12050WAH.pdf |
|
GE Critical Power | Module DC-DC 1-OUT 12V 20A 240W 15-Pin 1 8-Brick Tray Download PDF datasheet for EBDW020A0B641-HZ.pdf |
|
Ericsson | Module DC-DC 1-OUT 0.7V to 3.6V 30A 108W 14-Pin SMD T R Download PDF datasheet for PMN8118UWSR.pdf |
|
Texas Instruments | Module DC-DC 2-OUT 0.7V to 3.6V 10A 22-Pin DIP Module Tray Download PDF datasheet for PTD08D210WAC.pdf |
|
Texas Instruments | Module DC-DC 1-OUT 1.2V to 5.5V 12A 10-Pin DIP Module T R Download PDF datasheet for PTH12010WAST.pdf |
|
Murata Manufacturing | Module DC-DC 1-OUT 0.591V to 5.5V 3A 15W 12-Pin Case C-83 Download PDF datasheet for OKL-T 3-W12N-C.pdf |
|

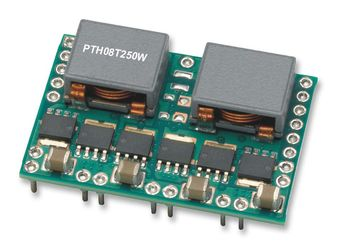

Texas Instruments | Module DC-DC 1-OUT 0.7V to 3.6V 50A 22-Pin DIP Module Tray Download PDF datasheet for PTH08T250WAD.pdf |
|
