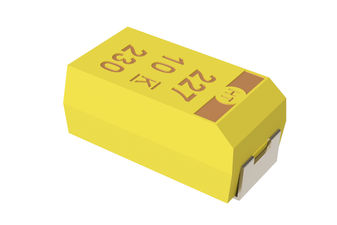

Please contact us for more photos of 593D226X9025D2TE3
| Part Number | 593D226X9025D2TE3 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 192070 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 22uF 25V D CASE 10% (7.3 X 4.3 X 2.8mm) SMD 7343-31 T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | 593D226X9025D2TE3 |
| Datasheet download |  593D226X9025D2TE3.pdf |
| Part Number | 593D226X9025D2TE3 |
|---|---|
| Package/Case | 7343-31,D |
| Lead Finish | Matte Tin |
| Polarity | Polar |
| Mounting | Surface Mount |
| Case Code | D |
| Capacitance Value | 22 uF |
| Type | Flat |
| Operating Temperature | -55 to 125 °C |
| MSL Level | 1 |
| Dissipation Factor | |
| Failure Rate | |
| Military Standard | |
| Leakage Current | |
| Equivalent Series Resistance | |
| Tolerance | 10 % |
| Product Dimensions | 7.3 x 4.3 x 2.8 mm |
| Voltage(DC) | 25 V |
| Max Processing Temp | 250 to 260|260 |
| Case Style | Molded |
| Case Size | 7343-31 |
| Product Depth | 4.3 mm |
| Product Height | 2.8 mm |
| Product Length | 7.3 mm |
| Replacement Part Number | PART-593D226X9025D2TE3 |
| Weight | Contact us |
| Country of Origin | - |
