CRCW0805200RJNEA Vishay

CRCW0805200RJNEA Images

Please contact us for more photos of CRCW0805200RJNEA

Part Number CRCW0805200RJNEA
Manufacturer Vishay
Quantity in stock 739620 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Thick Film 0805 200 Ohm 5% 1 8W \u00b1200ppm \u00b0C Molded SMD SMD Paper T R
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level CRCW0805200RJNEA
Datasheet download CRCW0805200RJNEA.pdf
Request Quotation for CRCW0805200RJNEA

CRCW0805200RJNEA Specifications

Part Number CRCW0805200RJNEA
Power Rating 0.125 W
Mounting Surface Mount
Case Size 0805
MSL Level 1
Lead Finish Tin
Operating Temperature -55 to 155 °C
Resistance Value 200 Ohm
Max Processing Temp 260
Rad Hard No
Product Dimensions 2 x 1.25 x 0.45 mm
Case Style Molded
Tolerance 5 %
Temperature Coefficient ±200 ppm/°C
Product Depth 1.25 mm
Product Height 0.45 mm
Product Length 2 mm
Product Weight 5.5 mg
Replacement Part Number PART-CRCW0805200RJNEA
Weight Contact us
Country of Origin -

Related parts for CRCW0805200RJNEA

Image Part Number and Brand Brief Description and PDF Datasheet

ERJS02J753X

Panasonic

Res Thick Film 0402 75K Ohm 5% 1 10W \u00b1200ppm \u00b0C Molded SMD SMD Punched Carrier T R

Download PDF datasheet for ERJS02J753X.pdf

MCR18EZPJ130

ROHM

Res Thick Film 1206 13 Ohm 5% 1 4W \u00b1200ppm \u00b0C Molded SMD Paper T R

Download PDF datasheet for MCR18EZPJ130.pdf

ERJ1GEF2742C

Panasonic

Res Thick Film 0201 27.4K Ohm 1% 1 20W \u00b1200ppm \u00b0C Molded SMD SMD Pressed Carrier T R

Download PDF datasheet for ERJ1GEF2742C.pdf

ERA3AEB271V

Panasonic

Res Thin Film 0603 270 Ohm 0.1% 1 10W \u00b125ppm \u00b0C Molded SMD SMD Punched Carrier T R

Download PDF datasheet for ERA3AEB271V.pdf

CRCW0603360RFKEA

Vishay

Res Thick Film 0603 360 Ohm 1% 1 10W \u00b1100ppm \u00b0C Molded SMD SMD Paper T R

Download PDF datasheet for CRCW0603360RFKEA.pdf

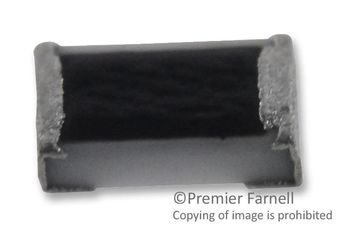

ERJ-P03F1500V
