PTN0603E6191BST1 Vishay

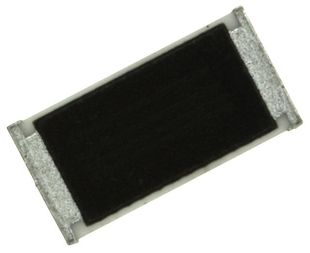

PTN0603E6191BST1 Images

Please contact us for more photos of PTN0603E6191BST1

Part Number PTN0603E6191BST1
Manufacturer Vishay
Quantity in stock 611180 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Thin Film 0603 6.19K Ohm 0.1% 3 20W \u00b125ppm \u00b0C Molded SMD SMD T R
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level PTN0603E6191BST1
Datasheet download PTN0603E6191BST1.pdf
Request Quotation for PTN0603E6191BST1

PTN0603E6191BST1 Specifications

Part Number PTN0603E6191BST1
Package Type SMD
Power Rating 0.15 W
Product Dimensions 1.63 x 0.81 x 0.51 mm
Tolerance 0.1 %
Rad Hard No
Lead Finish Tin/Silver/Copper
Case Style Molded
Max Processing Temp 260
Temperature Coefficient ±25 ppm/°C
Case Size 0603
Resistance Value 6.19 kOhm
Mounting Surface Mount
Type Thin Film
Operating Temperature -55 to 125 °C
Product Depth 0.81 mm
Product Height 0.51 mm
Product Length 1.63 mm
Replacement Part Number PART-PTN0603E6191BST1
Weight Contact us
Country of Origin -
