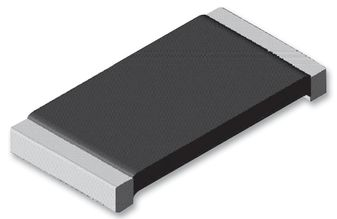

Please contact us for more photos of WSL12068L000FEA18
| Part Number | WSL12068L000FEA18 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 186370 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Metal Strip 1206 0.008 Ohm 1% 1 2W \u00b175ppm \u00b0C Molded SMD SMD Embossed Plastic T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | WSL12068L000FEA18 |
| Datasheet download |  WSL12068L000FEA18.pdf |
| Part Number | WSL12068L000FEA18 |
|---|---|
| Tolerance | 1 % |
| Power Rating | 0.5 W |
| Operating Temperature | -65 to 170 °C |
| Product Dimensions | 3.2 x 1.6 x 0.635 mm |
| Lead Finish | Matte Tin |
| MSL Level | 1 |
| Case Style | Molded |
| Rad Hard | No |
| Case Size | 1206 |
| Temperature Coefficient | ±75 ppm/°C |
| Resistance Value | 8 MOhm |
| Type | Metal Strip |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Package Type | SMD |
| Product Depth | 1.6 mm |
| Product Height | 0.635 mm |
| Product Length | 3.2 mm |
| Product Weight | 16.2 mg |
| Replacement Part Number | PART-WSL12068L000FEA18 |
| Weight | Contact us |
| Country of Origin | - |
