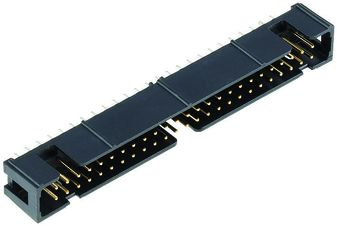

Please contact us for more photos of N2540-6002RB
| Part Number | N2540-6002RB |
|---|---|
| Manufacturer | 3M |
| Quantity in stock | 878570 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | N2540-6002RB |
| Datasheet download |  N2540-6002RB.pdf |
| Part Number | N2540-6002RB |
|---|---|
| Contact Material | Copper Alloy |
| Housing Material | Polychlorinated Terphenyl |
| Contact Plating | Gold Over Nickel |
| Gender | HDR |
| Termination Method | Solder |
| Type | Shrouded Header |
| Number of Rows | 2 |
| Maximum Voltage Rating | 1000 V |
| Rad Hard | No |
| Lead Finish | Matte Tin |
| Max Processing Temp | 260 |
| MSL Level | 1 |
| Body Orientation | Straight |
| Operating Temperature | -55 to 105 °C |
| Product Dimensions | 58.12 x 8.59 x 9.91 mm |
| Mounting | Through Hole |
| Pitch | 2.54 mm |
| Housing Color | Black |
| Product Depth | 8.59 mm |
| Product Height | 9.91 mm |
| Product Length | 58.12 mm |
| Replacement Part Number | PART-N2540-6002RB |
| Weight | Contact us |
| Country of Origin | - |
