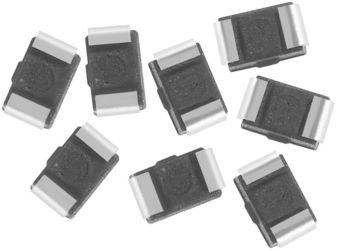

Please contact us for more photos of S1210R-223K
| Part Number | S1210R-223K |
|---|---|
| Manufacturer | API Delevan |
| Quantity in stock | 645420 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind RF Shielded 22uH 10% 2.5MHz 40Q-Factor Ferrite 232mA 1210 T R |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | S1210R-223K |
| Datasheet download |  S1210R-223K.pdf |
| Part Number | S1210R-223K |
|---|---|
| Product Dimensions | 3.51 x 2.66 x 2.57 mm |
| Package/Case | 1210 |
| Tolerance | 10 % |
| Rad Hard | No |
| Lead Finish | Tin/Silver/Copper |
| Max Processing Temp | 260 |
| Protection Style | Shielded |
| Operating Temperature | -55 to 125 °C |
| Test Frequency | 2.5 MHz |
| MSL Level | 1 |
| Product Depth | 2.66 mm |
| Product Height | 2.57 mm |
| Product Length | 3.51 mm |
| Replacement Part Number | PART-S1210R-223K |
| Weight | Contact us |
| Country of Origin | - |
