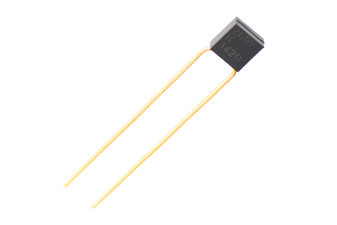

Please contact us for more photos of MD015E103MAB
| Part Number | MD015E103MAB |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 171720 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Ceramic 0.01uF 50V Z5U 20% Radial 2 Pin DIP 8.255mm 85\u00b0C Slide Pack |
| Category | Capacitors |
| Family | Capacitor Ceramic Multilayer |
| ROHS Compliant | Yes |
| MSL Level | MD015E103MAB |
| Datasheet download |  MD015E103MAB.pdf |
| Part Number | MD015E103MAB |
|---|---|
| Rad Hard | No |
| Capacitance Value | 0.01 uF |
| Dielectric | Z5U |
| Case Style | Molded |
| Tolerance | 20 % |
| Lead Pitch For Radial | 8.255 mm |
| Package/Case | 6.6 X 2.54(Max) X 3.43(Max) |
| Lead Diameter | 0.48 mm |
| Product Dimensions | 6.6 x 2.54 x 3.43 mm |
| Mounting | Through Hole |
| Voltage(DC) | 50 V |
| Seated Plane Height | 4.19 mm |
| Max Processing Temp | 260 |
| Lead Finish | Tin/Lead |
| Termination Style | Radial |
| Operating Temperature | 10 to 85 °C |
| Product Depth | 2.54(Max) mm |
| Product Height | 3.43(Max) mm |
| Product Length | 6.6 mm |
| Replacement Part Number | PART-MD015E103MAB |
| Weight | Contact us |
| Country of Origin | - |
