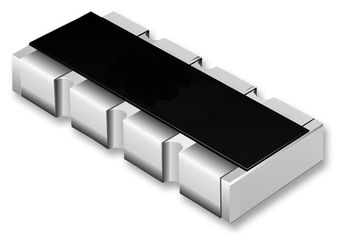

Please contact us for more photos of 742C083153JP
| Part Number | 742C083153JP |
|---|---|
| Manufacturer | CTS |
| Quantity in stock | 260740 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film Array 15K Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 8-Pin 1206(4 X 0603) Concave SMD Paper T R |
| Category | Resistor |
| Family | Resistor Networks and Arrays |
| ROHS Compliant | Yes |
| MSL Level | 742C083153JP |
| Datasheet download |  742C083153JP.pdf |
| Part Number | 742C083153JP |
|---|---|
| Lead Finish | Matte Tin |
| Mounting | Surface Mount |
| Technology | Thick Film |
| Product Dimensions | 3.2 x 1.6 x 0.53 mm |
| Operating Temperature | -55 to 125 °C |
| Terminal Pitch | 0.8 mm |
| Power Rating | 0.25 W |
| MSL Level | 1 |
| Power Rating per Resistor | 1/16 W |
| Resistance Value | 15 kOhm |
| Termination Style | Concave |
| Tolerance | 5 % |
| Max Processing Temp | 260 |
| Temperature Coefficient | ±200 ppm/°C |
| Case Style | Molded |
| Rad Hard | No |
| Case Size | 1206 |
| Product Depth | 1.6 mm |
| Product Height | 0.53 mm |
| Product Length | 3.2 mm |
| Replacement Part Number | PART-742C083153JP |
| Weight | Contact us |
| Country of Origin | - |
