Please contact us for more photos of PI3B3245LEX
| Part Number | PI3B3245LEX |
|---|---|
| Manufacturer | Diodes Incorporated |
| Quantity in stock | 597470 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Bus Switch 1-Element CMOS 8-IN 20-Pin TSSOP T R |
| Category | Logic & Timing IC |
| Family | Bus Switch |
| ROHS Compliant | Yes |
| MSL Level | PI3B3245LEX |
| Datasheet download |  PI3B3245LEX.pdf |
| Part Number | PI3B3245LEX |
|---|---|
| Maximum High Level Output Current | -120 mA |
| Propagation Delay Test Condition | 50 pF |
| Maximum Operating Supply Voltage | 3.63 V |
| Typical Quiescent Current | 0.1 uA |
| Operating Temperature | -40 to 85 °C |
| Logic Function | Bus Switch |
| Typical Operating Supply Voltage | 3.3 V |
| Number of Inputs per Chip | 8 |
| Max Processing Temp | 260 |
| Minimum Operating Supply Voltage | 2.97 V |
| Supplier Package | TSSOP |
| Lead Finish | Matte Tin |
| Maximum Low Level Output Current | 120 mA |
| Rad Hard | No |
| Mounting | Surface Mount |
| Maximum Propagation Delay Time @ Maximum CL | [email protected] ns |
| MSL Level | 1 |
| Number of Outputs per Chip | 8 |
| Configuration | 8 x 1:1 |
| Product Dimensions | 6.6 x 4.5 x 1.05 mm |
| Fabrication Technology | CMOS |
| Pin Count | 20 |
| Maximum Quiescent Current | 3 uA |
| Maximum On Resistance | 10 Ohm |
| Number of Elements per Chip | 1 |
| Package | 20TSSOP |
| Replacement Part Number | PART-PI3B3245LEX |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

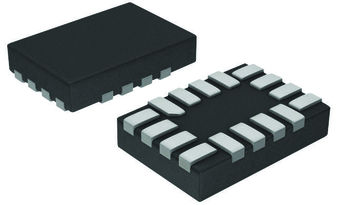

Texas Instruments | Multiplexer Demultiplexer Bus Switch 1-Element CMOS 8-IN 16-Pin UQFN T R Download PDF datasheet for SN74CBTLV3257RSVR.pdf |
|
