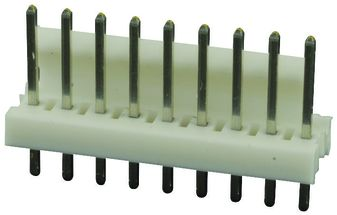

Please contact us for more photos of 0010321091
| Part Number | 0010321091 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 138510 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Wire to Board HDR 9 POS 5.08mm Solder ST Thru-Hole Bag |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 0010321091 |
| Datasheet download |  0010321091.pdf |
| Part Number | 0010321091 |
|---|---|
| Housing Color | Natural |
| Body Orientation | Straight |
| Lead Finish | Tin |
| Gender | HDR |
| Termination Method | Solder |
| Product Dimensions | 44.64 x 11.4 x 13.85 mm |
| Mounting | Through Hole |
| Operating Temperature | -40 to 105 °C |
| Pitch | 5.08 mm |
| Contact Material | Brass |
| Contact Plating | Tin |
| Housing Material | Nylon 6/6 |
| Product Depth | 11.4 mm |
| Product Height | 13.85 mm |
| Product Length | 44.64 mm |
| Replacement Part Number | PART-0010321091 |
| Weight | Contact us |
| Country of Origin | - |
