Please contact us for more photos of 504528-0892
| Part Number | 504528-0892 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 521240 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Micro SD Card SKT 8 POS 1.1mm Solder R A SMD Embossed T R 0.5A |
| Category | Connectors |
| Family | Connector Memory Card |
| ROHS Compliant | Yes |
| MSL Level | 504528-0892 |
| Datasheet download |  504528-0892.pdf |
| Part Number | 504528-0892 |
|---|---|
| Type | Micro SD Card |
| Maximum Current Rating | 0.5 A |
| Mounting | Surface Mount |
| Termination Method | Solder |
| Pitch | 1.1 mm |
| Number of Contacts | 8 |
| Product Dimensions | 15 x 17.25 x 1.4 |
| Body Orientation | Right Angle |
| Pin Count | 8 |
| Housing Material | Liquid Crystal Polymer |
| Operating Temperature | -25 to 85 °C |
| Gender | SKT |
| Drawing_URL | http://www.molex.com/pdm_docs/sd/5045280892_sd.pdf |
| Number of Rows | 1 |
| Rad Hard | No |
| Lead Finish | Gold Over Nickel |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Over Nickel |
| Product Depth | 17.25 mm |
| Product Height | 1.4 mm |
| Product Length | 15 mm |
| Replacement Part Number | PART-504528-0892 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Amphenol-FCI | Conn Express Card Host HDR 26 POS 1mm Solder RA SMD T R 0.75A Contact Download PDF datasheet for 10053826-100ABTLF.pdf |
|
Molex | Conn SIM M 6 POS 2.54mm Solder RA SMD Embossed T R 0.5A Contact Download PDF datasheet for 0475350001.pdf |
|
3M | Connector Accessories Left Dual Push Ejector Thermoplastic Stainless Steel Download PDF datasheet for 7G24-B6A6-05.pdf |
|
Molex | Conn SIM Card SKT 8 POS 2.54mm Solder RA SMD Embossed T R 0.5A Download PDF datasheet for 1510320001.pdf |
|

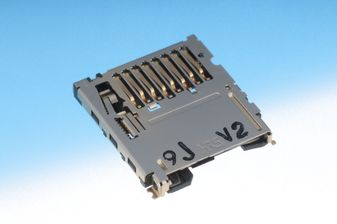

Hirose Electric | Conn Micro SD Card HDR 8 POS 1.1mm Solder RA SMD Embossed T R 0.5A Download PDF datasheet for DM3BT-DSF-PEJS.pdf |
|
