P1170.142NLT Pulse

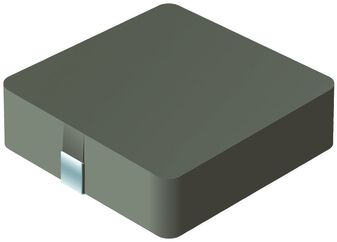

P1170.142NLT Images

Please contact us for more photos of P1170.142NLT

Part Number P1170.142NLT
Manufacturer Pulse
Quantity in stock 837190 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Ind Power Shielded Wirewound 1.4uH 30% 100KHz 11A T R
Category Inductor
Family Inductor Surface Mount
ROHS Compliant Yes
MSL Level P1170.142NLT
Datasheet download P1170.142NLT.pdf
Request Quotation for P1170.142NLT

P1170.142NLT Specifications

Part Number P1170.142NLT
Tolerance 30 %
Operating Temperature -40 to 130 °C
Package/Case 12.24 X 12.24 X 6
Product Dimensions 12.24 x 12.24 x 6 mm
Protection Style Shielded
Rad Hard No
Technology Wirewound
Test Frequency 100 kHz
Type Power
Product Depth 12.24 mm
Product Height 6 mm
Product Length 12.24 mm
Replacement Part Number PART-P1170.142NLT
Weight Contact us
Country of Origin -
