Please contact us for more photos of PA2050.782NL
| Part Number | PA2050.782NL |
|---|---|
| Manufacturer | Pulse |
| Quantity in stock | 579220 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind Power Wirewound 7.8uH 10% 13.3A |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | PA2050.782NL |
| Datasheet download |  PA2050.782NL.pdf |
| Part Number | PA2050.782NL |
|---|---|
| Type | Power |
| Product Dimensions | 22.23 x 19.05 x 12.2 mm |
| Maximum DC Resistance | 5.1 mOhm |
| Inductance | 7.8 uH |
| Maximum DC Current | 13.3 A |
| Rad Hard | No |
| Technology | Wirewound |
| Tolerance | 10 % |
| Operating Temperature | -55 to 130 °C |
| Package/Case | 22.23 X 19.05 X 12.2 |
| Product Depth | 19.05 mm |
| Product Height | 12.2 mm |
| Product Length | 22.23 mm |
| Replacement Part Number | PART-PA2050.782NL |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

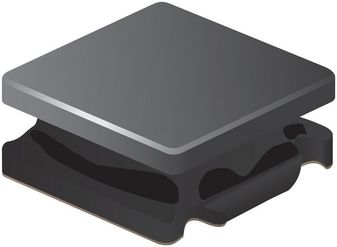

Bourns | Ind Power Semi-Shielded Wirewound 150uH 20% 100KHz Ferrite 320mA 1515 T R Download PDF datasheet for SRN4018-151M.pdf |
|
