MCR50JZHJ240 ROHM

MCR50JZHJ240 Images

Please contact us for more photos of MCR50JZHJ240

Part Number MCR50JZHJ240
Manufacturer ROHM
Quantity in stock 723560 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Thick Film 2010 24 Ohm 5% 1 2W \u00b1200ppm \u00b0C Molded SMD Embossed T R
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level MCR50JZHJ240
Datasheet download MCR50JZHJ240.pdf
Request Quotation for MCR50JZHJ240

MCR50JZHJ240 Specifications

Part Number MCR50JZHJ240
Type Thick Film
Package Dimensions 5 x 2.5 x 0.55 mm
Maximum Processing Temperature 260 °C
Temperature Coefficient ±200 ppm/°C
Rad Hard No
Case Style Molded
Pin Count 2
Tolerance 5 %
Case Size 2010
Termination Style Wraparound
Mounting Surface Mount
Supplier Package 2010
Resistance Value 24 Ohm
Lead Finish Tin Over Nickel
Operating Temperature -55 to 155 °C
Product Depth 2.5 mm
Product Height 0.55 mm
Product Length 5 mm
Replacement Part Number PART-MCR50JZHJ240
Weight Contact us
Country of Origin -

Related parts for MCR50JZHJ240

Image Part Number and Brand Brief Description and PDF Datasheet

CRCW0402309KFKED

Vishay

Res Thick Film 0402 309K Ohm 1% 1 16W \u00b1100ppm \u00b0C Molded SMD SMD Paper T R

Download PDF datasheet for CRCW0402309KFKED.pdf

ERA6YEB103V

Panasonic

Res Metal Film 0805 10K Ohm 0.1% 1 8W \u00b125ppm \u00b0C Molded SMD SMD Punched Carrier T R

Download PDF datasheet for ERA6YEB103V.pdf

CRCW020143K0FNED

Vishay

Res Thick Film 0201 43K Ohm 1% 1 20W \u00b1200ppm \u00b0C Molded SMD SMD Paper T R

Download PDF datasheet for CRCW020143K0FNED.pdf

ERJ1GEJ182C

Panasonic

Res Thick Film 0201 1.8K Ohm 5% 1 20W \u00b1200ppm \u00b0C Molded SMD SMD Pressed Carrier T R

Download PDF datasheet for ERJ1GEJ182C.pdf

NTR12F1R00DTRF

NIC Components

Res Thin Film 1206 1 Ohm 1% 1 8W \u00b150ppm \u00b0C Molded SMD SMD Paper T R

Download PDF datasheet for NTR12F1R00DTRF.pdf

MCR01MZPF7152

ROHM

Res Thick Film 0402 71.5K Ohm 1% 1 16W \u00b1100ppm \u00b0C Molded SMD SMD Paper T R

Download PDF datasheet for MCR01MZPF7152.pdf

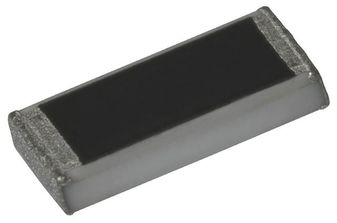

CRL1206-FW-R240ELF
