Q24FA20H0038600 Seiko Instruments

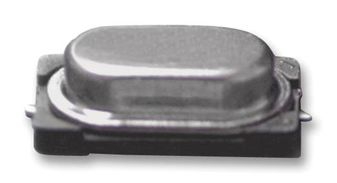

Q24FA20H0038600 Images

Please contact us for more photos of Q24FA20H0038600

Part Number	Q24FA20H0038600
Manufacturer	Seiko Instruments
Quantity in stock	520160 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	Crystal 12MHz 10pF 4-Pin CSMD T R
Category	Logic & Timing IC
Family	Crystals
ROHS Compliant	Yes
MSL Level	Q24FA20H0038600
Datasheet download	-

Request Quotation for Q24FA20H0038600

Q24FA20H0038600 Specifications

Part Number	Q24FA20H0038600
Product Dimensions	2.5 x 2 x 0.55(Max)
Rad Hard	No
Series Resistance	150 Ohm
Mode of Oscillation	Fundamental
Standard Frequency	12 MHz
Frequency Aging	±3(1st)
Mounting	Surface Mount
Max Processing Temp	260
Type	Crystal
Frequency Stability
Frequency Tolerance
Lead Finish	Gold
Supplier Package	CSMD
Pin Count	4
Load Capacitance
Package	4CSMD
Replacement Part Number	PART-Q24FA20H0038600
Weight	Contact us
Country of Origin	-
