B82442H1155K000 TDK

B82442H1155K000 Images

Please contact us for more photos of B82442H1155K000

Part Number B82442H1155K000
Manufacturer TDK
Quantity in stock 881100 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Ind High Current Chip Molded Wirewound 1.5mH 10% 252KHz 30Q-Factor Ferrite 100mA 2220 Blister T R
Category Inductor
Family Inductor Surface Mount
ROHS Compliant Yes
MSL Level B82442H1155K000
Datasheet download B82442H1155K000.pdf
Request Quotation for B82442H1155K000

B82442H1155K000 Specifications

Part Number B82442H1155K000
Protection Style Molded
Type High Current Chip
MSL Level 1
Product Dimensions 5.9 x 5.3 x 5.3 mm
Lead Finish Tin
Package/Case 2220
Test Frequency 252 kHz
Tolerance 10 %
Technology Wirewound
Rad Hard No
Max Processing Temp 260
Core Material Ferrite
Product Depth 5.3 mm
Product Height 5.3 mm
Product Length 5.9 mm
Replacement Part Number PART-B82442H1155K000
Weight Contact us
Country of Origin -

Related parts for B82442H1155K000

Image Part Number and Brand Brief Description and PDF Datasheet

IMC0603ER27NG01

Vishay

Ind Chip Wirewound 27nH 2% 250MHz 40Q-Factor Ceramic 600mA 0603 T R

Download PDF datasheet for IMC0603ER27NG01.pdf

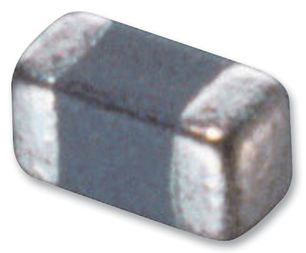

BLM18PG221SN1D

Murata Manufacturing

Ind Chip Bead 220Ohm 25% 100MHz Ferrite 1.4A 0603 Paper T R

Download PDF datasheet for BLM18PG221SN1D.pdf

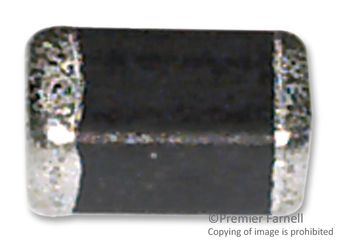

MI0603J601R-10
