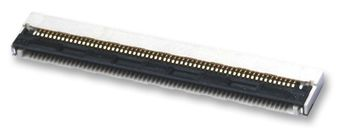

Please contact us for more photos of 1-1734592-4
| Part Number | 1-1734592-4 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 744010 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn FPC Connector SKT 14 POS 0.5mm Solder RA SMD T R |
| Category | Connectors |
| Family | Connector FFC-FPC |
| ROHS Compliant | Yes |
| MSL Level | 1-1734592-4 |
| Datasheet download |  1-1734592-4.pdf |
| Part Number | 1-1734592-4 |
|---|---|
| Operating Temperature | -20 to 85 °C |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5 mm |
| Contact Plating | Gold Over Nickel |
| Family Name | Flexible Printed Circuit (FPC) Connectors |
| Mounting | Surface Mount |
| Termination Method | Solder |
| Housing Color | Natural |
| Product Dimensions | 12.43 x 5.1 x 2.05 mm |
| Contact Gender | SKT |
| Max Processing Temp | 245|260 |
| Body Orientation | Right Angle |
| Product Depth | 5.1 mm |
| Product Height | 2.05 mm |
| Product Length | 12.43 mm |
| Replacement Part Number | PART-1-1734592-4 |
| Weight | Contact us |
| Country of Origin | - |
