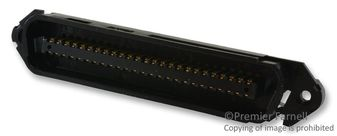

Please contact us for more photos of 5552725-3
| Part Number | 5552725-3 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 489180 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn IEEE 488 RCP 50 POS 2.16mm Solder RA Thru-Hole 50 Terminal 1 Port |
| Category | Connectors |
| Family | Connector Interface |
| ROHS Compliant | Yes |
| MSL Level | 5552725-3 |
| Datasheet download |  5552725-3.pdf |
| Part Number | 5552725-3 |
|---|---|
| Operating Temperature | -40 to 105 °C |
| Mounting | Through Hole |
| Termination Method | Solder |
| Pitch | 2.16 mm |
| Gender | RCP |
| Lead Finish | Tin |
| Body Orientation | Right Angle |
| Max Processing Temp | 240|260|265 |
| Number of Ports | 1 |
| Number of Contacts | 50 |
| Type | IEEE 488 |
| Number of Terminals | 50 |
| Contact Plating | Gold Over Nickel |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Product Dimensions | 83.32 x 25.66 x 16 mm |
| Rad Hard | No |
| Product Depth | 25.66 mm |
| Product Height | 16 mm |
| Product Length | 83.32 mm |
| Replacement Part Number | PART-5552725-3 |
| Weight | Contact us |
| Country of Origin | - |
