Please contact us for more photos of 917722-1
| Part Number | 917722-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 309770 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Shrouded Header HDR 2 POS 2.5mm Solder ST Thru-Hole Loose Piece |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 917722-1 |
| Datasheet download |  917722-1.pdf |
| Part Number | 917722-1 |
|---|---|
| Maximum Contact Resistance | 20 |
| Termination Method | Solder |
| Housing Color | Natural |
| Maximum Current Rating | 3/Contact |
| Mounting | Through Hole |
| Type | Shrouded Header |
| Body Orientation | Straight |
| Gender | HDR |
| Product Dimensions | 7.5 x 8.2 x 15.3 mm |
| Rad Hard | No |
| Number of Rows | 1 |
| Contact Material | Copper Alloy |
| Operating Temperature | -30 to 105 °C |
| Pitch | 2.5 mm |
| Contact Plating | Pre-Tin |
| Maximum Voltage Rating | |
| Number of Contacts | 2 |
| Housing Material | Nylon 66 |
| Product Depth | 8.2 mm |
| Product Height | 15.3 mm |
| Product Length | 7.5 mm |
| Replacement Part Number | PART-917722-1 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
TE Connectivity | Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Download PDF datasheet for 2-644486-4.pdf |
|
TE Connectivity | Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Reel Download PDF datasheet for 280373-1.pdf |
|

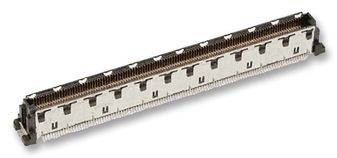

TE Connectivity | Conn Fine Pitch Connector PL 220 POS 0.5mm Solder ST SMD Tray Download PDF datasheet for 3-6318491-6.pdf |
|
TE Connectivity | Conn IDC Connector F 18 POS 2.54mm IDT RA Cable Mount Loose Piece Download PDF datasheet for 4-643813-8.pdf |
|
Molex | Conn Shrouded Header HDR 12 POS 1mm Solder ST SMD Embossed T R Download PDF datasheet for 501331-1207.pdf |
|
Molex | Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Tube Download PDF datasheet for 705450073.pdf |
|

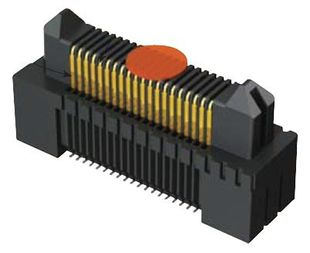

Samtec | Conn High Speed Edge Rate Terminal Strip HDR 60 POS 0.5mm Solder ST SMD T R Download PDF datasheet for ERM5-030-02.0-L-DV-TR.pdf |
|
