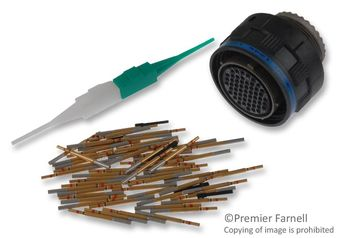

Please contact us for more photos of D38999 26WD5PN
| Part Number | D38999 26WD5PN |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 277830 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn MIL-C-38999 Circular PIN 5 POS Crimp ST Cable Mount 5 Terminal 1 Port |
| Category | Connectors |
| Family | Connector Circular |
| ROHS Compliant | Yes |
| MSL Level | D38999 26WD5PN |
| Datasheet download |  D38999 26WD5PN.pdf |
| Part Number | D38999 26WD5PN |
|---|---|
| Contact Material | Copper Alloy |
| Contacts Classification | 5Signal |
| Gender | PL |
| Strain Relief | No |
| Shell Size / Insert Arrangement | 15-5 |
| Maximum Current Rating | 46|23|13|7.5 A |
| Maximum Voltage Rating | |
| Number of Contacts | 30 |
| Number of Terminals | 30 |
| Number of Ports | 1 |
| Operating Temperature | -65 to 175 °C |
| Contact Plating | Gold Over Nickel |
| Drawing_URL | |
| Product Dimensions | 33.14 mm |
| Rad Hard | No |
| Body Orientation | Straight |
| Mounting | Cable Mount |
| Termination Method | Crimp |
| Type | MIL-DTL-38999 Circular |
| Contact Gender | PIN |
| Product Diameter | 32.48 mm |
| Product Length | 33.14 mm |
| Replacement Part Number | PART-D38999 26WD5PN |
| Weight | Contact us |
| Country of Origin | - |
