Please contact us for more photos of M8340109K2201FCD03
| Part Number | M8340109K2201FCD03 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 805430 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film NET 2.2K Ohm 1% 1.08W \u00b1100ppm \u00b0C BUS Molded 10-Pin SIP Pin Thru-Hole Tube |
| Category | Resistor |
| Family | Resistor Networks and Arrays |
| ROHS Compliant | Yes |
| MSL Level | M8340109K2201FCD03 |
| Datasheet download |  M8340109K2201FCD03.pdf |
| Part Number | M8340109K2201FCD03 |
|---|---|
| Technology | Thick Film |
| Resistance Value | 2.2 kOhm |
| Tolerance | 1 % |
| Lead Finish | Tin/Lead |
| Termination Style | Pin |
| Mounting | Through Hole |
| Power Rating | 1.08 W |
| Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100 ppm/°C |
| Terminal Pitch | 2.54 mm |
| Product Dimensions | 24.97 x 2.49 x 4.75 mm |
| Case Style | Molded |
| Power Rating per Resistor | 3/25 W |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Product Depth | 2.49 mm |
| Product Height | 4.75 mm |
| Product Length | 24.97 mm |
| Product Weight | 600 mg |
| Replacement Part Number | PART-M8340109K2201FCD03 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Res Thick Film Array 47 Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB2HV470JV.pdf |
|
Panasonic | Res Thick Film Array 22 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804 Convex SMD Punched Paper T R Download PDF datasheet for EXBU28220JX.pdf |
|
Panasonic | Res Thick Film Array 22 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804(4 X 0402) Concave SMD Punched Carrier T R Download PDF datasheet for EXB-N8V220JX.pdf |
|
ROHM | Res Thick Film NET 1M Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 4-Pin 0606 Convex SMD Paper T R Download PDF datasheet for MNR12E0APJ105.pdf |
|
Panasonic | Res Thick Film Array 27 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 8-Pin 0804 Convex SMD Punched Paper T R Download PDF datasheet for EXBU28270JX.pdf |
|
Panasonic | Res Thick Film Array 22 Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 4-Pin 0404 Convex SMD Punched Paper T R Download PDF datasheet for EXBU24220JX.pdf |
|
Bourns | Res Thick Film NET 82K Ohm 2% 9 10W \u00b1100ppm \u00b0C ISOL Molded 6-Pin SIP Pin Thru-Hole Download PDF datasheet for 4306M-102-823LF.pdf |
|

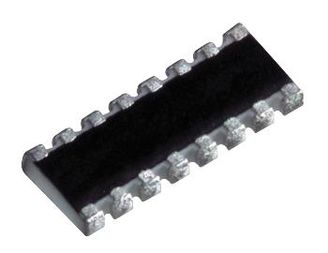

Panasonic | Res Thick Film Array 2.2K Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB2HV222JV.pdf |
|
