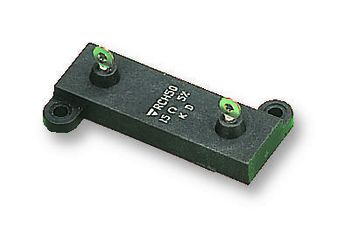

Please contact us for more photos of RCECISOFD7801KB
| Part Number | RCECISOFD7801KB |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 207820 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 7.8K Ohm 10% 100W \u00b1250ppm \u00b0C Molded Faston Bolt-On Box |
| Category | Resistor |
| Family | Resistor Misc |
| ROHS Compliant | Yes |
| MSL Level | RCECISOFD7801KB |
| Datasheet download |  RCECISOFD7801KB.pdf |
| Part Number | RCECISOFD7801KB |
|---|---|
| Rad Hard | No |
| Type | Thick Film |
| Operating Temperature | -40 to 125 °C |
| Power Rating | 100 W |
| Temperature Coefficient | ±250 ppm/°C |
| Mounting | Bolt-On |
| Case Style | Molded |
| Termination Style | Faston |
| Tolerance | 10 % |
| Resistance Value | 7.8 kOhm |
| Package Dimensions | 38 x 25 x 19.3 mm |
| Product Depth | 25 mm |
| Product Height | 19.3 mm |
| Product Length | 38 mm |
| Product Weight | 20 G |
| Replacement Part Number | PART-RCECISOFD7801KB |
| Weight | Contact us |
| Country of Origin | - |
