Please contact us for more photos of WSR3R0100FEA
| Part Number | WSR3R0100FEA |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 169820 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Metal Strip 4527 0.01 Ohm 1% 3W \u00b175ppm \u00b0C Molded SMD SMD Embossed Plastic T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | WSR3R0100FEA |
| Datasheet download |  WSR3R0100FEA.pdf |
| Part Number | WSR3R0100FEA |
|---|---|
| Lead Finish | Tin/Silver |
| Operating Temperature | -65 to 275 °C |
| Resistance Value | 10 MOhm |
| Power Rating | 3 W |
| Max Processing Temp | 260 |
| Product Dimensions | 11.56 x 6.98 x 2.41 mm |
| Rad Hard | No |
| Case Style | Molded |
| Mounting | Surface Mount |
| Tolerance | 1 % |
| Temperature Coefficient | ±75 ppm/°C |
| MSL Level | 1 |
| Case Size | 4527 |
| Product Depth | 6.98 mm |
| Product Height | 2.41 mm |
| Product Length | 11.56 mm |
| Product Weight | 440 mg |
| Replacement Part Number | PART-WSR3R0100FEA |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Res Thick Film 0805 1.62K Ohm 1% 1 8W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R Download PDF datasheet for ERJ6ENF1621V.pdf |
|

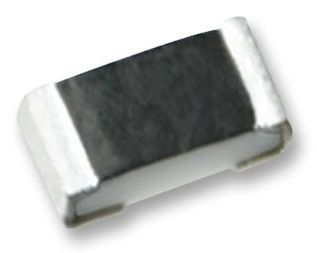

Panasonic | Res Thick Film 0805 0.1 Ohm 1% 1 4W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R Download PDF datasheet for ERJL06KF10CV.pdf |
|
