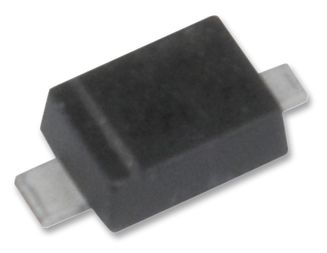

Please contact us for more photos of DZ2J300L0L
| Part Number | DZ2J300L0L |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 787240 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Zener Single 31.5V 200mW 2-Pin SC-90A Embossed T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | DZ2J300L0L |
| Datasheet download |  DZ2J300L0L.pdf |
| Part Number | DZ2J300L0L |
|---|---|
| Typical Voltage Temperature Coefficient | 28.7 mV/°C |
| Nominal Zener Voltage | 12 to 24 V |
| Mounting | Surface Mount |
| Test Current | 2 mA |
| Screening Level | Industrial |
| Product Dimensions | 1.7 x 1.25 x 0.7 |
| MSL Level | 1 |
| Lead Finish | Tin|Bismuth |
| Maximum Power Dissipation | 200 mW |
| Maximum Zener Impedance | 160 Ohm |
| Rad Hard | No |
| Maximum Reverse Leakage Current | 0.05 uA |
| Operating Temperature | -40 to 85 °C |
| Pin Count | 2 |
| Supplier Package | SC-90A |
| Package | 2SC-90A |
| Replacement Part Number | PART-DZ2J300L0L |
| Weight | Contact us |
| Country of Origin | - |
