Please contact us for more photos of MMSZ4713T1G
| Part Number | MMSZ4713T1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Quantity in stock | 654400 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Zener Single 30V 5% 500mW 2-Pin SOD-123 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | MMSZ4713T1G |
| Datasheet download |  MMSZ4713T1G.pdf |
| Part Number | MMSZ4713T1G |
|---|---|
| Lead Finish | Matte Tin |
| Product Dimensions | 2.69 x 1.6 x 1.12 mm |
| Supplier Package | SOD-123 |
| Mounting | Surface Mount |
| Zener Voltage Tolerance | 5 % |
| Maximum Reverse Leakage Current | 0.01 uA |
| ESD Protection | Yes |
| Type | Voltage Regulator |
| MSL Level | 1 |
| Test Current | 0.05 mA |
| Maximum Power Dissipation | 500 mW |
| Pin Count | 2 |
| Operating Temperature | -55 to 150 °C |
| Rad Hard | No |
| Nominal Zener Voltage | 30 V |
| Max Processing Temp | 260 |
| Configuration | Single |
| Package | 2SOD-123 |
| Replacement Part Number | PART-MMSZ4713T1G |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Leshan Radio | Diode Switching 1000V 1A 2-Pin DO-41 Ammo Download PDF datasheet for 1N4007(LRC)(T B).pdf |
|
Diodes Incorporated | Diode Schottky 30V 0.1A 6-Pin SOT-363 T R Download PDF datasheet for BAT54DW-7-F.pdf |
|

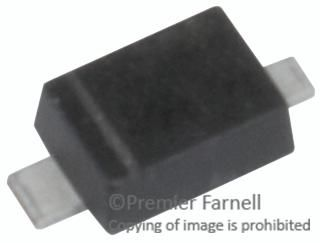

Panasonic | Diode Switching 30V 0.2A 2-Pin SC-90A Embossed T R Download PDF datasheet for DB2J31000L.pdf |
|
