PM1608S-100M-RC Bourns

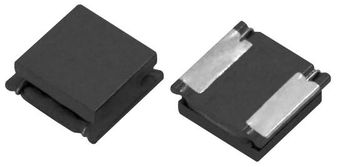

PM1608S-100M-RC Images

Please contact us for more photos of PM1608S-100M-RC

Part Number PM1608S-100M-RC
Manufacturer Bourns
Quantity in stock 734910 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Ind Power Shielded Bobbin Core 10uH 20% 100KHz 40Q-Factor Ferrite 1A T R
Category Inductor
Family Inductor Surface Mount
ROHS Compliant Yes
MSL Level PM1608S-100M-RC
Datasheet download PM1608S-100M-RC.pdf
Request Quotation for PM1608S-100M-RC

PM1608S-100M-RC Specifications

Part Number PM1608S-100M-RC
Rad Hard No
Operating Temperature -55 to 125 °C
Protection Style Shielded
Lead Finish Gold
MSL Level 2
Product Dimensions 6.6 x 4.4 x 3 mm
Test Frequency 100 kHz
Package/Case 6.6 X 4.4 X 3
Max Processing Temp 250
Type Power
Core Material Ferrite
Technology Bobbin Core
Tolerance 20 %
Product Depth 4.4 mm
Product Height 3 mm
Product Length 6.6 mm
Replacement Part Number PART-PM1608S-100M-RC
Weight Contact us
Country of Origin -
