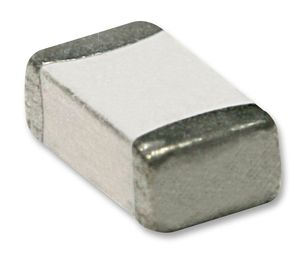

Please contact us for more photos of 1025HC30-RTR
| Part Number | 1025HC30-RTR |
|---|---|
| Manufacturer | Eaton |
| Quantity in stock | 786790 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Fuse Chip 30A 250V Fast 2-Pin SMD T R |
| Category | Circuit Protection |
| Family | Fuses |
| ROHS Compliant | Yes |
| MSL Level | 1025HC30-RTR |
| Datasheet download |  1025HC30-RTR.pdf |
| Part Number | 1025HC30-RTR |
|---|---|
| Pin Count | 2 |
| Type | Chip |
| Package Dimensions | 10 x 3.15 x 3.15 |
| Acting | Fast |
| Maximum DC Voltage Rating | 72 |
| Lead Finish | Silver |
| Maximum Processing Temperature | 260 |
| Supplier Package | SMD |
| Current Rating | 30 |
| Fuse Material | Ceramic |
| Screening Level | Military |
| Voltage Rating | 250 |
| Mounting | Surface Mount |
| Maximum AC Voltage Rating | 250 |
| Operating Temperature | -55 to 125 °C |
| Rad Hard | No |
| Replacement Part Number | PART-1025HC30-RTR |
| Weight | Contact us |
| Country of Origin | - |
