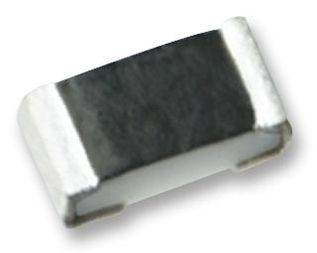

Please contact us for more photos of ERJ1TYJ132U
| Part Number | ERJ1TYJ132U |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 768630 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 2512 1.3K Ohm 5% 1W \u00b1200ppm \u00b0C Molded SMD SMD Embossed Carrier T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ERJ1TYJ132U |
| Datasheet download |  ERJ1TYJ132U.pdf |
| Part Number | ERJ1TYJ132U |
|---|---|
| Operating Temperature | -55 to 155 °C |
| Lead Finish | Tin |
| Mounting | Surface Mount |
| Power Rating | 1 W |
| Product Dimensions | 6.4 x 3.2 x 0.6 mm |
| Rad Hard | No |
| Temperature Coefficient | ±200 ppm/°C |
| Case Style | Molded |
| Tolerance | 5 % |
| Resistance Value | 1.3 kOhm |
| Case Size | 2512 |
| Max Processing Temp | 260 |
| Product Depth | 3.2 mm |
| Product Height | 0.6 mm |
| Product Length | 6.4 mm |
| Product Weight | 45 mg |
| Replacement Part Number | PART-ERJ1TYJ132U |
| Weight | Contact us |
| Country of Origin | - |
