ERJ8ENF1780V Panasonic

ERJ8ENF1780V Images

Please contact us for more photos of ERJ8ENF1780V

Part Number ERJ8ENF1780V
Manufacturer Panasonic
Quantity in stock 579570 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Thick Film 1206 178 Ohm 1% 1 4W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level ERJ8ENF1780V
Datasheet download ERJ8ENF1780V.pdf
Request Quotation for ERJ8ENF1780V

ERJ8ENF1780V Specifications

Part Number ERJ8ENF1780V
Case Size 1206
Rad Hard No
Max Processing Temp 260
Case Style Molded
Mounting Surface Mount
Resistance Value 178 Ohm
Product Dimensions 3.2 x 1.6 x 0.6 mm
Power Rating 0.25 W
Lead Finish Tin
Operating Temperature -55 to 155 °C
Tolerance 1 %
Temperature Coefficient ±100 ppm/°C
Product Depth 1.6 mm
Product Height 0.6 mm
Product Length 3.2 mm
Product Weight 10 mg
Replacement Part Number PART-ERJ8ENF1780V
Weight Contact us
Country of Origin -

Related parts for ERJ8ENF1780V

Image Part Number and Brand Brief Description and PDF Datasheet

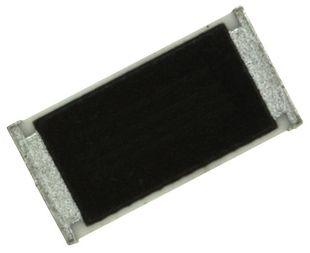

ERJ-3EKF1000V
