Please contact us for more photos of MCW0406MC3831FP500
| Part Number | MCW0406MC3831FP500 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 414420 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thin Film 0406 3.83K Ohm 1% 1 4W \u00b150ppm \u00b0C Molded SMD Paper T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | MCW0406MC3831FP500 |
| Datasheet download |  MCW0406MC3831FP500.pdf |
| Part Number | MCW0406MC3831FP500 |
|---|---|
| Lead Finish | Pure Tin Over Nickel |
| Supplier Package | 0406 |
| Product Dimensions | 1 x 1.5 x 0.3 |
| Pin Count | 2 |
| Rad Hard | No |
| Case Style | Molded |
| Operating Temperature | -55 to 175 °C |
| Max Processing Temp | 260 |
| Case Size | 0406 |
| Termination Style | Wraparound |
| Mounting | Surface Mount |
| Power Rating | 0.25 W |
| Resistance Value | 3.83 kOhm |
| Temperature Coefficient | ±50 ppm/°C |
| Tolerance | 1 % |
| Product Depth | 1.5 mm |
| Product Height | 0.3 mm |
| Product Length | 1 mm |
| Product Weight | 1.9 mg |
| Replacement Part Number | PART-MCW0406MC3831FP500 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Vishay | Res Thick Film 1206 4.7K Ohm 5% 1 4W \u00b1100ppm \u00b0C 0.01% Molded SMD SMD T R Download PDF datasheet for D55342K07B4K70RS2.pdf |
|
Panasonic | Res Thick Film 0402 1.69K Ohm 1% 1 10W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R Download PDF datasheet for ERJ2RKF1691X.pdf |
|
Vishay | Res Thick Film 0705 510 Ohm 1% 3 20W \u00b1100ppm \u00b0C Molded SMD T R Download PDF datasheet for M55342K06B510DRS2.pdf |
|
Panasonic | Res Thick Film 0402 3.4K Ohm 1% 1 10W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R Download PDF datasheet for ERJ2RKF3401X.pdf |
|

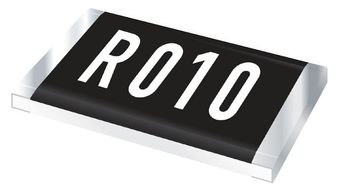

Bourns | Res Thick Film 1206 0.68 Ohm 1% 1 4W \u00b1200ppm \u00b0C Molded SMD SMD Paper Tape on Plastic Reel Download PDF datasheet for CRL1206-FW-R680ELF.pdf |
|
