ASPI-0403S-101M-T Abracon

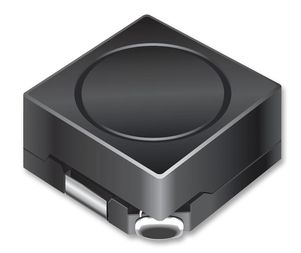

ASPI-0403S-101M-T Images

Please contact us for more photos of ASPI-0403S-101M-T

Part Number ASPI-0403S-101M-T
Manufacturer Abracon
Quantity in stock 784020 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Ind Power Shielded Wirewound 100uH 20% 100KHz 300mA T R
Category Inductor
Family Inductor Surface Mount
ROHS Compliant Yes
MSL Level ASPI-0403S-101M-T
Datasheet download ASPI-0403S-101M-T.pdf
Request Quotation for ASPI-0403S-101M-T

ASPI-0403S-101M-T Specifications

Part Number ASPI-0403S-101M-T
Technology Wirewound
Package/Case 6.6 X 4.45 X 2.92
Rad Hard No
Operating Temperature -40 to 85 °C
Max Processing Temp 260
Tolerance 20 %
Type Power
Test Frequency 100 kHz
Product Dimensions 6.6 x 4.45 x 2.92 mm
Protection Style Shielded
Inductance
Maximum Self Resonant Frequency
Maximum DC Resistance
Minimum Quality Factor
Maximum DC Current
Core Material
Impedance
Product Depth 4.45 mm
Product Height 2.92 mm
Product Length 6.6 mm
Replacement Part Number PART-ASPI-0403S-101M-T
Weight Contact us
Country of Origin -
