CR0805-FX-1583ELF Bourns

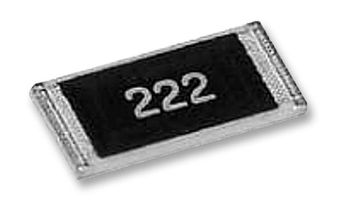

CR0805-FX-1583ELF Images

Please contact us for more photos of CR0805-FX-1583ELF

Part Number CR0805-FX-1583ELF
Manufacturer Bourns
Quantity in stock 631580 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Res Thick Film 0805 158K Ohm 1% 1 8W \u00b1100ppm \u00b0C Molded SMD SMD Paper Tape on Plastic Reel
Category Resistor
Family Resistor Fixed Single-Surface Mount
ROHS Compliant Yes
MSL Level CR0805-FX-1583ELF
Datasheet download CR0805-FX-1583ELF.pdf
Request Quotation for CR0805-FX-1583ELF

CR0805-FX-1583ELF Specifications

Part Number CR0805-FX-1583ELF
Rad Hard No
Type Thick Film
Mounting Surface Mount
Lead Finish Tin
Case Style Molded
Tolerance 1 %
Power Rating 0.125 W
MSL Level 1
Operating Temperature -55 to 155 °C
Temperature Coefficient ±100 ppm/°C
Package Type SMD
Case Size 0805
Resistance Value 158 kOhm
Max Processing Temp 260
Product Dimensions 2 x 1.25 x 0.5 mm
Product Depth 1.25 mm
Product Height 0.5 mm
Product Length 2 mm
Replacement Part Number PART-CR0805-FX-1583ELF
Weight Contact us
Country of Origin -
