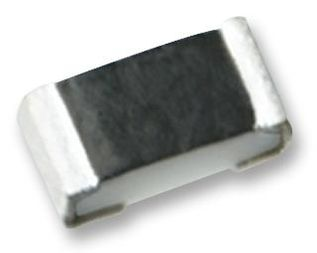

Please contact us for more photos of MCR100JZHF10R0
| Part Number | MCR100JZHF10R0 |
|---|---|
| Manufacturer | ROHM |
| Quantity in stock | 210760 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 2512 10 Ohm 1% 1W \u00b1100ppm \u00b0C Molded SMD SMD Embossed T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | MCR100JZHF10R0 |
| Datasheet download |  MCR100JZHF10R0.pdf |
| Part Number | MCR100JZHF10R0 |
|---|---|
| Tolerance | 1 % |
| Product Dimensions | 6.3 x 3.2 x 0.55 mm |
| Operating Temperature | -55 to 125 °C |
| Package Type | SMD |
| Power Rating | 1 W |
| Mounting | Surface Mount |
| Lead Finish | Tin |
| Temperature Coefficient | ±100 ppm/°C |
| Failure Rate | |
| Military Standard | |
| Resistance Value | 10 Ohm |
| Rad Hard | No |
| Case Style | Molded |
| Max Processing Temp | 260 |
| Type | Thick Film |
| Case Size | 2512 |
| Product Depth | 3.2 mm |
| Product Height | 0.55 mm |
| Product Length | 6.3 mm |
| Product Weight | 42 mg |
| Replacement Part Number | PART-MCR100JZHF10R0 |
| Weight | Contact us |
| Country of Origin | - |
