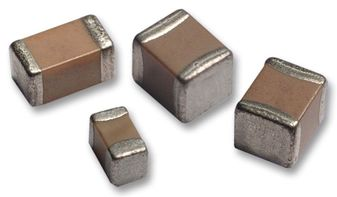

Please contact us for more photos of C0603C220G5GAC7867
| Part Number | C0603C220G5GAC7867 |
|---|---|
| Manufacturer | KEMET |
| Quantity in stock | 549710 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Ceramic 22pF 50V C0G 2% SMD 0603 125\u00b0C Paper T R |
| Category | Capacitors |
| Family | Capacitor Ceramic Multilayer |
| ROHS Compliant | Yes |
| MSL Level | C0603C220G5GAC7867 |
| Datasheet download |  C0603C220G5GAC7867.pdf |
| Part Number | C0603C220G5GAC7867 |
|---|---|
| Construction | Flat |
| Lead Finish | Matte Tin |
| Rad Hard | No |
| Operating Temperature | -55 to 125 °C |
| MSL Level | 1 |
| Mounting | Surface Mount |
| Capacitance Value | 22 pF |
| Package/Case | 0603 |
| Case Size | 0603 |
| Tolerance | 2 % |
| Military Standard | |
| Voltage(DC) | 50 V |
| Product Dimensions | 1.6 x 0.8 x 0.8 mm |
| Max Processing Temp | 260 |
| Case Style | Ceramic Chip |
| Dielectric | |
| Failure Rate | |
| Product Depth | 0.8 mm |
| Product Height | 0.8 mm |
| Product Length | 1.6 mm |
| Replacement Part Number | PART-C0603C220G5GAC7867 |
| Weight | Contact us |
| Country of Origin | - |
