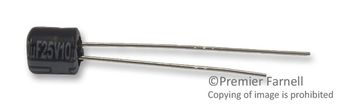

Please contact us for more photos of EEAGA1V220
| Part Number | EEAGA1V220 |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 335750 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Aluminum 22uF 35V 20% (6.3 X 7mm) Radial 2.5mm 70mA 1000 hr 105\u00b0C Bulk |
| Category | Capacitors |
| Family | Capacitor Aluminum |
| ROHS Compliant | Yes |
| MSL Level | EEAGA1V220 |
| Datasheet download |  EEAGA1V220.pdf |
| Part Number | EEAGA1V220 |
|---|---|
| Voltage(DC) | 35 V |
| Lead Finish | Tin |
| Max Processing Temp | 250 to 260 |
| Ripple Current | 70 mA |
| Capacitance Value | 22 uF |
| Mounting | Through Hole |
| Termination Style | Radial |
| Lead Pitch For Radial | 2.5 mm |
| Product Dimensions | 7 mm |
| Tolerance | 20 % |
| Leakage Current | 7.7@2Min uA |
| Rad Hard | No |
| Lifetime | 1000 |
| Operating Temperature | -55 to 105 °C |
| Package/Case | 6.3 X 7 |
| Product Diameter | 6.3 mm |
| Product Height | 7 mm |
| Replacement Part Number | PART-EEAGA1V220 |
| Weight | Contact us |
| Country of Origin | - |
