Please contact us for more photos of EEEHA1A220WR
| Part Number | EEEHA1A220WR |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 896350 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Aluminum 22uF 10V 20% (4 X 5.4mm) SMD 28mA 1000h 105\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Aluminum |
| ROHS Compliant | Yes |
| MSL Level | EEEHA1A220WR |
| Datasheet download |  EEEHA1A220WR.pdf |
| Part Number | EEEHA1A220WR |
|---|---|
| Mounting | Surface Mount |
| Construction | Cylindrical |
| Package/Case | 4 X 5.4 |
| Capacitance Value | 22 uF |
| Operating Temperature | -40 to 105 °C |
| Voltage(DC) | 10 V |
| Product Dimensions | 5.4 mm |
| Leakage Current | 3@2Min uA |
| Rad Hard | No |
| Tolerance | 20 % |
| Ripple Current | 28 mA |
| Max Processing Temp | 250 |
| Lead Finish | Tin/Bismuth |
| Product Diameter | 4 mm |
| Product Height | 5.4 mm |
| Replacement Part Number | PART-EEEHA1A220WR |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
NIC Components | Cap Aluminum 10uF 16V 20% (4 X 5.5mm) SMD 26.5 Ohm 25mA 2000 hr 85\u00b0C T R Download PDF datasheet for NACE100M16V4X5.5TR13F.pdf |
|
Nippon ChemiCon | Cap Aluminum 1500uF 100V \u00b120% (22 X 35mm) Snap-In Aluminum Cylindrical Can 10mm 2410mA 2000hr 85\u00b0C Download PDF datasheet for ESMH101VSN152MP35W.pdf |
|
Panasonic | Cap Aluminum 22uF 50V 20% (5 X 11mm) Radial Aluminum Cylindrical Can 2mm 65mA 1000 hr 105\u00b0C Bulk Download PDF datasheet for ECA1HHG220.pdf |
|
Nippon ChemiCon | Cap Aluminum 470uF 50V \u00b120% (12.5 X 16mm) Cylindrical 2000hr 85\u00b0C Tray Download PDF datasheet for EMVA500ATR471MKG5S.pdf |
|
Nippon ChemiCon | Cap Aluminum 2200uF 10V \u00b120% (12.5 X 20mm) Radial Aluminum Cylindrical Can 5mm 0.035 Ohm 1900mA 8000hr 105\u00b0C Bulk Download PDF datasheet for EKY-100ELL222MK20S.pdf |
|

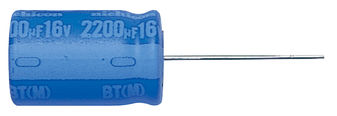

Nichicon | Cap Aluminum 330uF 50V 20% (12.5 X 20mm) Radial Aluminum Cylindrical Can 5mm 1330mA 10000 hr 125\u00b0C Bulk Download PDF datasheet for UBT1H331MHD8.pdf |
|
Panasonic | Cap Aluminum 10uF 50V 20% (6.3 X 5.8mm) SMD 33mA 5000 hr 105\u00b0C T R Download PDF datasheet for EEE-HD1H100P.pdf |
|

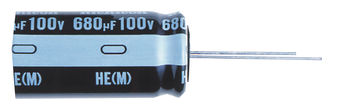

Nichicon | Cap Aluminum 470uF 50V 20% (10 X 31.5mm) Radial 5mm 1690mA 7000 hr 105\u00b0C Bulk Download PDF datasheet for UHE1H471MPD.pdf |
|
