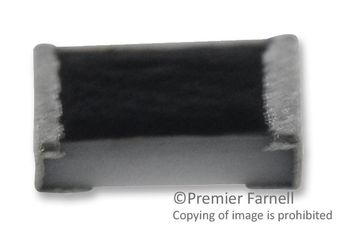

Please contact us for more photos of ERA2AED561X
| Part Number | ERA2AED561X |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 472890 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thin Film 0402 560 Ohm 0.5% 1 16W \u00b125ppm \u00b0C Molded SMD SMD Punched Carrier T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ERA2AED561X |
| Datasheet download |  ERA2AED561X.pdf |
| Part Number | ERA2AED561X |
|---|---|
| Rad Hard | No |
| Max Processing Temp | 260 |
| Case Style | Molded |
| Temperature Coefficient | ±25 ppm/°C |
| Product Dimensions | 1 x 0.5 x 0.35 mm |
| Resistance Value | 560 Ohm |
| Tolerance | 0.5 % |
| Mounting | Surface Mount |
| Case Size | 0402 |
| Power Rating | 0.0625 W |
| Lead Finish | Tin |
| Operating Temperature | -55 to 155 °C |
| Product Depth | 0.5 mm |
| Product Height | 0.35 mm |
| Product Length | 1 mm |
| Product Weight | 0.6 mg |
| Replacement Part Number | PART-ERA2AED561X |
| Weight | Contact us |
| Country of Origin | - |
