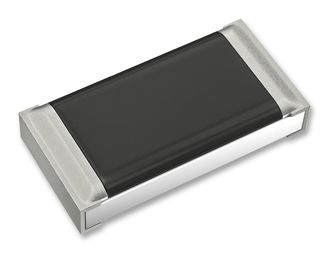

Please contact us for more photos of ERJP06J270V
| Part Number | ERJP06J270V |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 568940 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 0805 27 Ohm 5% 1 4W \u00b1300ppm \u00b0C Molded SMD SMD Punched Carrier T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ERJP06J270V |
| Datasheet download |  ERJP06J270V.pdf |
| Part Number | ERJP06J270V |
|---|---|
| Mounting | Surface Mount |
| Lead Finish | Tin |
| Product Dimensions | 2 x 1.25 x 0.6 mm |
| Case Style | Molded |
| Operating Temperature | -55 to 155 °C |
| Rad Hard | No |
| Resistance Value | 27 Ohm |
| Case Size | 0805 |
| Temperature Coefficient | ±300 ppm/°C |
| Tolerance | 5 % |
| Power Rating | 0.25 W |
| Max Processing Temp | 260 |
| Product Depth | 1.25 mm |
| Product Height | 0.6 mm |
| Product Length | 2 mm |
| Product Weight | 4 mg |
| Replacement Part Number | PART-ERJP06J270V |
| Weight | Contact us |
| Country of Origin | - |
