Please contact us for more photos of LG HKQ0603W3N0B-T
| Part Number | LG HKQ0603W3N0B-T |
|---|---|
| Manufacturer | TAIYO YUDEN |
| Quantity in stock | 857450 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind High Frequency Chip Multi-Layer 3nH 0.1nH 500MHz 15Q-Factor Ceramic 500mA 0201 Paper T R |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | LG HKQ0603W3N0B-T |
| Datasheet download |  LG HKQ0603W3N0B-T.pdf |
| Part Number | LG HKQ0603W3N0B-T |
|---|---|
| Pin Count | 2 |
| Type | High Frequency Chip |
| Supplier Package | 0201 |
| Technology | Multi-Layer |
| Maximum DC Resistance | 200 MOhm |
| Package Dimensions | 0.6 x 0.3 x 0.3 mm |
| Impedance | |
| Maximum Self Resonant Frequency | 8.5(Min) GHz |
| Test Frequency | 500 MHz |
| Tolerance | 0.1 nH |
| Minimum Quality Factor | 15@500MHz |
| Rad Hard | No |
| Inductance | 3 nH |
| Package/Case | 0201 |
| Core Material | Ceramic |
| Maximum Processing Temperature | 260 °C |
| Maximum DC Current | 500 mA |
| Operating Temperature | -55 to 125 °C |
| Product Depth | 0.3 mm |
| Product Height | 0.3 mm |
| Product Length | 0.6 mm |
| Replacement Part Number | PART-LG HKQ0603W3N0B-T |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
NIC Components | Ind RF Chip Molded Wirewound 220nH 5% 25.2MHz 30Q-Factor 450mA 1210 Emboss T R Download PDF datasheet for NIN-FAR22JTR450F.pdf |
|
Bourns | Ind Power Shielded Wirewound 4.7uH 30% 100KHz 9Q-Factor Ferrite 2.2A T R Download PDF datasheet for SRU5028-4R7Y.pdf |
|
Bourns | Ind Chip Bead 600Ohm 25% 100MHz Ferrite 100mA 0603 T R Download PDF datasheet for MZ1608-601Y.pdf |
|
TAIYO YUDEN | Ind High Frequency Chip Multi-Layer 3nH 0.1nH 500MHz 15Q-Factor Ceramic 500mA 0201 Paper T R Download PDF datasheet for LG HKQ0603W3N0B-T.pdf |
|
Bourns | Ind Power Wirewound 12uH 20% 1KHz 25Q-Factor Ferrite 2A T R Download PDF datasheet for SDR0805-120ML.pdf |
|
Murata Manufacturing | Ind Common Mode Choke Wirewound 260Ohm 25% 100MHz 310mA 1206 Embossed T R Download PDF datasheet for DLW31SN261SQ2L.pdf |
|
Murata Manufacturing | FIXED INDUCTOR 4.7UH 20% Download PDF datasheet for LQM2HPZ4R7MGSL.pdf |
|
TAIYO YUDEN | Ind Chip Bead Shielded Multi-Layer 600Ohm 25% 100MHz Ferrite 250mA 0402 T R Download PDF datasheet for BK 1005HM601-T.pdf |
|

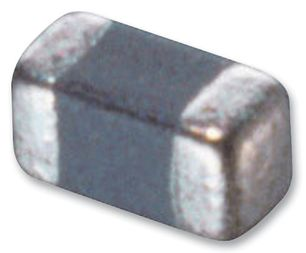

Murata Manufacturing | Ind Chip Bead 120Ohm 25% 100MHz Ferrite 2A 0603 Paper T R Download PDF datasheet for BLM18EG121SN1D.pdf |
|
