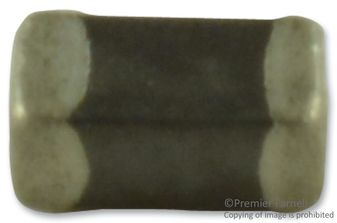

Please contact us for more photos of AIMC-0402-8N2S-T
| Part Number | AIMC-0402-8N2S-T |
|---|---|
| Manufacturer | Abracon |
| Quantity in stock | 543790 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind Chip Unshielded Multi-Layer 8.2nH 0.3nH 100MHz 9Q-Factor Ceramic 300mA 0402 T R |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | AIMC-0402-8N2S-T |
| Datasheet download |  AIMC-0402-8N2S-T.pdf |
| Part Number | AIMC-0402-8N2S-T |
|---|---|
| Tolerance | 0.3 nH |
| Max Processing Temp | 260 |
| Type | Chip |
| Protection Style | Unshielded |
| Maximum DC Resistance | |
| Pin Count | 2 |
| Core Material | Ceramic |
| Package/Case | 0402 |
| Supplier Package | 0402 |
| Maximum Self Resonant Frequency | |
| Maximum DC Current | |
| Inductance | |
| Impedance | |
| Minimum Quality Factor | 9@100MHz |
| Technology | Multi-Layer |
| Operating Temperature | -55 to 125 °C |
| Rad Hard | No |
| Test Frequency | 100 MHz |
| Product Dimensions | 1 x 0.5 x 0.5 |
| Product Depth | 0.5 mm |
| Product Height | 0.5 mm |
| Product Length | 1 mm |
| Replacement Part Number | PART-AIMC-0402-8N2S-T |
| Weight | Contact us |
| Country of Origin | - |
