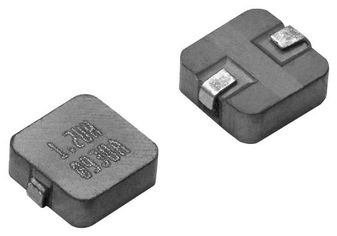

Please contact us for more photos of HC2LP-2R2-R
| Part Number | HC2LP-2R2-R |
|---|---|
| Manufacturer | Eaton |
| Quantity in stock | 630060 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Ind Power Wirewound 2.2uH 20% 300KHz Ferrite 24.3A T R |
| Category | Inductor |
| Family | Inductor Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | HC2LP-2R2-R |
| Datasheet download |  HC2LP-2R2-R.pdf |
| Part Number | HC2LP-2R2-R |
|---|---|
| Package/Case | 19.2 X 19.2 X 11.18 |
| Product Dimensions | 19.2 x 19.2 x 11.18 mm |
| Test Frequency | 300 kHz |
| Technology | Wirewound |
| Tolerance | 20 % |
| Rad Hard | No |
| Operating Temperature | -40 to 85 °C |
| Max Processing Temp | 260 |
| Core Material | Ferrite |
| Type | Power |
| Product Depth | 19.2 mm |
| Product Height | 11.18 mm |
| Product Length | 19.2 mm |
| Replacement Part Number | PART-HC2LP-2R2-R |
| Weight | Contact us |
| Country of Origin | - |
